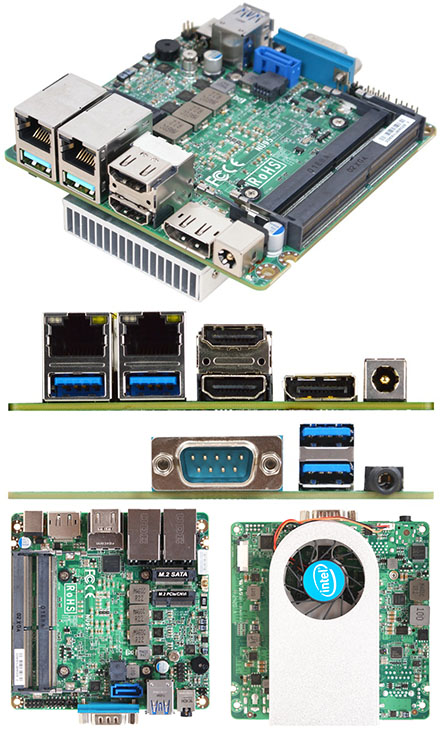

Jetway JNU95-5205u (Intel Comet Lake-U) [2x LAN, 3x HDMI/DP, NUC, 12-24V DC-in]

Jetway JNU95-5205u (Intel Comet Lake-U) [2x LAN, 3x HDMI/DP, NUC, 12-24V DC-in]
  • Intel Comet Lake !
  • NUC Formfactor !
  • Support Triple Displays !

  • Intel® Celeron® Prozessor 5205U
  • 2* DDR4 2666MHz up to 64GB
  • 1* Intel® I219LM GbE, 1* Intel® i211AT GbE
  • 1* SATAIII, 1* M.2 (M key), 1* M.2 (E key) Support CNVi
  • 2* HDMI, 1* DP
  • 1* RS232/422/485, 4* USB3.2, 2* USB2.0
  • 12~24V DC in
  • NUC Form Factor (101 *101 mm)




Share

198.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
Model – JNU95-5205u
Form Factor – NUC (101 * 101mm)
Processor System – Intel® Celeron® Prozessor 5205U
– SoC chipset
– AMI 128M Flash ROM BIOS
Expansion Slot – 1* M.2 M key (2242, SATA interface)
– 1* M.2 E key (2230, Support CNVi)
– 1* SATAIII
Memory – 2* DDR4 2666 MHz SO-DIMM up to 64GB
Graphics – 1* HDMI1.4 (Max Resolution : 4096×2304@30Hz)
– 1* HDMI2.0 (Max Resolution : 4096×2304@60Hz)
– 1* DP (Max Resolution : 4096×2304@60Hz)
– Support Triple Displays
Ethernet – 1* Intel® I219LM GbE
– 1* Intel® i211AT GbE
Audio – HD Audio: Realtek® ALC662
SATA – 1* SATAIII (6.0Gb/s)
Rear I/O – 2* HDMI
– 1* DP
– 2* RJ45
– 2* USB3.2 (Gen2)
– 12~24V DC-in
Front I/O – 1* Audio (Line-out, MIC)
– 1* RS232/422/485 (Support 5/12V TTL)
– 2* USB3.2 (Gen2)
Internal Connector – 2* USB2.0
– 1* SATAIII (6.0Gb/s)
– 1* M.2 (M key)
– 1* M.2 (E key)
– 1* GPIO (8bit, 5V)
– 1* AT mode
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10 ~ 255min)
Power 12~24V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Linux
