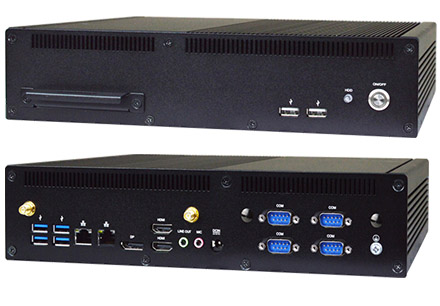

Jetway HBFFI02i-Q470-B (Intel LGA1200 Sockel 10/11th Gen.) [4x COM, 2,5" HDD TRAY, WLAN]

Jetway HBFFI02i-Q470-B (Intel LGA1200 Sockel 10/11th Gen.) [4x COM, 2,5" HDD TRAY, <b>WLAN</b>]
  • Intel 10/11th Gen. Socket !
  • LGA1200 !
  • HBFFI02 !
  • WLAN !

  • Intel LGA1200 Socket 10/11th generation Pentium, Core i3, i5, i7 Processors, up to 35W
  • Dual CH non-ECC DDR4 2933/2666/2400MHz SODIMM
  • 1* 2.5” HDD TRAY Design
  • Support 2* HDMI, 1* DP, 4* COM, 2* USB2.0, 4* USB 3.2, 1* Line-out, 1* MIC
  • Adapter DC19V 120W
  • WLAN




Share

709.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
 MB Model – MI02-Q470 Series/ Mini-ITX
 Part No Non-Wifi M.2 ac WiFi card TPM2.0
– HBFFI02-Q470-B – HBFFI02I-Q470-B (WIFI) – HBFFI02-Q470-T (non-WIFI + TPM2.0)
– HBFFI02I-Q470-T (WIFI + TPM2.0)
 BIOS – AMI Flash ROM
 CPU/Chipset – INTEL® LGA 1200 Socket 10/11th generation Core i7 / i5 / i3 /Pentium CPU (35W)
– INTEL® Q470E chipset
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.
 Memory – 2 * SO-DIMM slots / dual channel DDR4 2933/2666/2400MHz up to 64GB
* Core i9 / i7 CPUs support DDR4 up to 2933MHz
* Core i5 / i3 CPUs support DDR4 up to 2666MHz
* Pentium / Celeron CPUs support DDR4 up to 2400MHz
 Network – 1 * Intel i219LM GbE
– 1 * Intel i225LM 2.5GbE
 Storage – 1 * 2.5” SATAIII 6Gb/s internal drive bay (only support 2.5″ HDD with a height ≤ 10mm)
– 1 * M.2 M-Key 2280 (SATA/PCIex4) support NVMe
 Expansion slot – 1 * M.2 E-Key, 2230 (PCIe x1 /USB2.0) support CNVi
– 1 * M.2 B-Key 3042/3052 (USB3.0/USB2.0/PCIe x1) W/SIM card holder
 Rear Panel I/O – 4 * USB 3.2
– 2 * HDMI (Max Resolution: 4096×2160@30Hz)
– 1 * DP (Max Resolution: 4096×2304@60Hz)
– 2 * RJ45
– 1 * Line-out, 1 * MIC
– 4 * COM
– 1 * DC-in
 Front Panel I/O – 1 * Power button, 1 * Power LED, 1 * HDD LED
– 2 * USB 2.0
– 1 * 2.5” HDD Tray (Easy to replace the hard disk, does not support hot swap)
 Compliance – CE, FCC, LVD, RoHS, ErP Ready
 Power Source – MB : DC12~28V input
– Adapter : AC110~240V to DC19V-6.3A 120W
 Temperature – Operating Temperature: -20 ~ 50° C (The test environment is closed and windless)
– Storage Temperature: -10 ~ 70° C
– Humidity: 90% , non-condensing
 Dimensions – 290 (W) x 207 (D) x 65 (H) mm
 Packing – Net Weight: 3.8KG
– Gross Weight: 4.8KG
– Color Box dimension: 406 (W) * 148 (D) * 359 (H) mm
 OS Support – Windows 10, Linux
