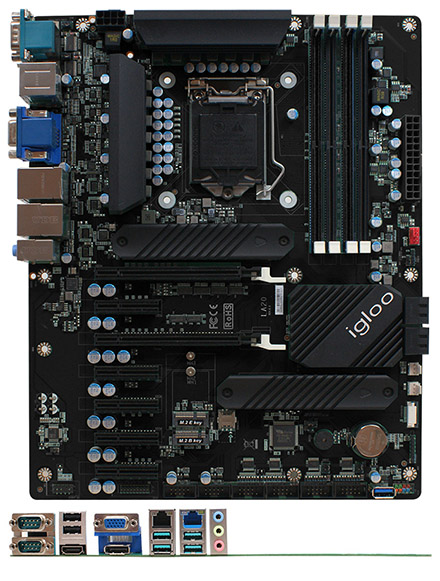

Jetway JLA20-10 (LGA1200 Intel Comet Lake-S Q470E, 2x LAN, 2x COM)

Jetway JLA20-10 (LGA1200 Intel Comet Lake-S Q470E, 2x LAN, 2x COM)
  • LGA1200 !
  • 2x COM !
  • 2x LAN !
  • ATX Format !

  • Intel® LGA1200 Socket supports 10/11th Gen. Core Processor (Max 125W)
  • Intel® Comet Lake-S Q470E chipset
  • 4* DDR4 3200/2933MHz up to 128GB
  • 1* Intel® i225-V 2.5GbE, 1* Intel® i219-LM GbE
  • 2* M.2 M Key (NVMe),1* M.2 E Key (CNVi), 1* M.2 B Key
  • 4* SATA III (6Gb/s), support Raid 0/1/5/10
  • 1* VGA, 1* HDMI, 1* DP
  • 2* RS232/422/485, 4* RS232, 4* USB3.2 (Gen.2), 1* USB3.2 (Gen.1), 6* USB2.0
  • 2* PCI-E x16, 5* PCI-E x 4 Slots
  • 2* CPU FAN, 2* System FAN
  • 24 + 8 Pin ATX Power Input
  • ATX Form Factor (305x244mm)




Share

469.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Model – JLA20-10
– JLA20-12 (TPM2.0)
Form Factor – ATX (305 x 244mm)
Processor System – Intel® LGA1200 Socket supports 10th/11th Gen Core Processor Max 125W
– Intel® Q470E chipset
– AMI 256M Flash ROM
Memory – 4* DDR4 3200/2933 MHz Long DIMM up to 128GB
Storage – 4* SATAIII (6.0Gb/s, Support Raid 0/1/5/10)
– 2* M.2 M-key (2242/2280, support NVMe, M2M1 Only 11th CPU)
Expansion – 1* M.2 B-key (3042/3052, USB3.2+PCI-Ex1 interface, Support 4G/5G Module)
– 1* M.2 E-key (2230, CNVi+USB2.0 interface, Support WIFI/BT Module)
– 2* PCIe x16 slots (by CPU)
– 5* PCIe x4 slots (PCIE2 by CPU, PCIE4 is PCIe x1 interface)
Ethernet – 1* Intel® i219-LM GbE
– 1* Intel® i225-V 2.5GbE
Graphics – Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 2560×1600@60Hz)
– 1* DP1.2 (Max Resolution: 4096×2304@60Hz)
– 1* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
Audio – Line-in, Line-out, MIC
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 4* USB2.0
– 1* USB3.2 (Gen1, TYPE A)
– 4* RS232 (COM3/4 support 5/12V TTL)
– 4* M.2 (2* M-key, 1* B-key, 1* E-key)
– 2* PCIe x16 slots (by CPU)
– 5* PCIe x4 slots (PCIE2 by CPU, PCIE4 is PCIe x1 interface)
– 1* GPIO (16 bit, 5V)
– 1* PS/2
– 2* CPU FAN (Support Smart FAN)
– 2* System FAN
– 1* Chassis intrusion
– 1* SMBUS/ I2C
– 1* AT mode
External I/O – 2* RS232/422/485 (Support 5V/12V TTL)
– 4* USB3.2 (Gen.2)
– 2* USB2.0
– 1* VGA
– 1* HDMI
– 1* DP
– 2* RJ45
– Line-in, Line-out, MIC
Power ATX PWR (8 + 24 pin)
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating Temperature: 0 ~ 60° C
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Windows 11, Linux

Data sheet Download (PDF)
Data sheet Print view
