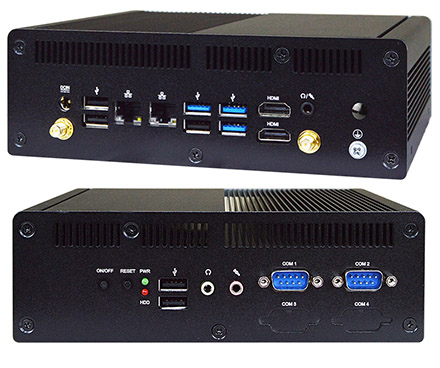

Jetway HBFDF04-6412B (Intel Elkhart Lake) [2x 4K HDMI, 2x LAN, 2x COM]

Jetway HBFDF04-6412B (Intel Elkhart Lake) [2x 4K HDMI, 2x LAN, 2x COM]
  • Intel Elkhart Lake !
  • 2x 4K HDMI !
  • Support NVMe !

  • Intel® Elkhart Lake Celeron® J and N Series SoC Processor
  • Long-Life Embedded Class with Planned Lifecycle Through Q1'2036
  • 2 * DDR4-3200MHz Dual Channel SO-DIMM up to 32GB
  • Up to 2 4K HDMI Displays
  • 1 * Intel i225-LM 2.5GbE, 1 * Intel i211-AT GbE
  • Onboard 32GB eMMC, 3 * M.2 Slots
  • ECO-design for EuP/ErP





Share

479.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

Build/Install:
Model SeriesFDF04
Part NumberHBFDF04-6412B (Non-WIFI)
HBFDF04i-6412B (WIFI)		HBFDF04-6412T (Non-WIFI, TPM 2.0)
HBFDF04i-6412T (WIFI, TPM 2.0)
Motherboard Specification
CPUIntel® Celeron J6412, 2.00GHz – 2.60GHz Burst, 4-Core 4-Thread, 10W (Formerly Elkhart Lake)
Memory2 x 260-pin Dual Channel DDR4-3200 SO-DIMM up to 32GB Total
GraphicsIntel® UHD Graphics for 10th Gen Intel® Processors
AudioRealtek ALC662 HD Audio
LAN1 x Intel I225-LM PCIe 2.5GbE
1 x Intel I211-AT PCIe Gigabit LAN
Storage1 x SATA3 6Gb/s
1 x M.2 (SATA & PCIe 3.0 x2, M-key, 2242/2280 NVMe)
Onboard 32GB eMMC
WiFiM.2 2230 E-key Open Slot for HBFDF04 Series (Non-WIFI)
WiFi + Bluetooth Installed for HBFDF04i Series (WIFI)
SIMM.2 3042 B-key Open Slot (USB bus for 3G/4G Modem)
TPMIntel fTPM 2.0 (PTT) Trusted Computing FirmwareIntel fTPM 2.0 (PTT) Trusted Computing Firmware
Onboard NUVOTON TPM v2.0
Chassis Specification
Enclosure Size193 (W) x 142.4 (D) x 62 (H) mm
Storage Bay1 * 2.5” SATA Drive Bay
Front I/O Port 1 Power Button
1 Reset Button
1 Power LED
1 HDD LED
2 USB 2.0 Ports
1 3.5mm Line-out Jack
1 3.5mm Mic-in Jack
2 Serial Ports (1 * RS232, 1 * RS232/422/485)
Rear I/O Port 1 3.5mm Line-out & MIC-in Combo Audio Jack
1 RJ45 LAN (10/100/1000/2500)
1 RJ45 LAN (10/100/1000)
3 USB 3.2 Gen 2 (10 Gb/s)
3 USB 2.0 Port
2 HDMI 2.0b (4096 * 2160 @ 60Hz)
2 Antenna Holes
1 GND Screw
1 +12V – 24V 2.5mm Diameter DC Power Jack
PowerAdapter : AC_90~240V / DC_12V/60W
EnvironmentOperating Temperature : 0°C ~ 50°C with air flow
Storage Temperature : -25°C ~ 85°C
Humidity : 10% ~ 90% RH @40°C (non-condensing)
ApplicationDigital Signage, POS, Kiosk, Carputer, Industrial PC, Automation, Gaming, Digital Security, Surveillance, Transportation, Medical
CertificateCE,FCC,ErP For Barebone
CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
