Jetway HBJC386F951T-3940B (Intel Apollo Lake) [16bit GPIO, 4x COM]

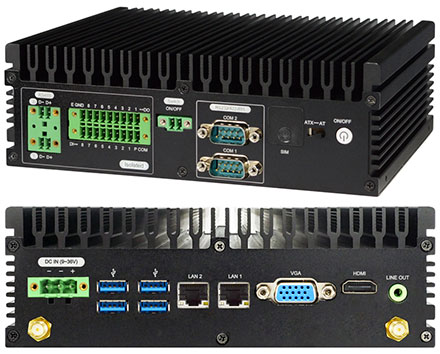

Jetway HBJC386F951T-3940B (Intel Apollo Lake) [16bit GPIO, 4x COM]

  • Intel Apollo Lake-I SoC Processor (Default: E3940)
  • Support 1* SO-DIMM DDR3L-1866MHz up to 8GB
  • All-aluminum body, produced by casting process
  • Operating Temperature: -40 ~ 70°C
  • 9~36V DC-in (Phoenix terminal connector)


Share

619.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

Build/Install:
MB Model – JNF951T-E3940
Model No. – HBJC386F951T-3940B
– HBJC386F951TW-3940B (WIFI)
BIOS – AMI Flash ROM
CPU/Chipset – Intel® Apollo Lake-I SoC Processor (Default: E3940)
Memory – 1* SO-DIMM slots DDR3L-1866MHz up to 8GB
Storage – 1* 2.5” SATA3 6Gb/s internal drive bay
– 1* M.2 (M-key 2280) slot for SSD
Network – 2* Intel I210-IT GbE
– 1* Full-size mini-PCIE slot
Rear Panel I/O – 4* USB3.0
– 2* RJ45
– 1* VGA
– 1* HDMI
– 1* Line out
– 2* WIFI Antenna (HBJC386F951TW-3940B only)
– 1* DC-in (3 Pin Phoenix terminal)
Front Panel I/O – 1* Power SW + Power LED
– 1* ATX & AT mode Switch
– 1* SIM Card slot
– 2* COM (RS232/422/485_ COM1 w/power)
– 1* Power SW (2 PIN out)
– 1* 16 bit GPIO (8-IN, 8-OUT w/isolated)
– 2* RS485 (w/isolated)
Power Source – Adapter: AC 90~240V input / DC12V-5A-60W
– MB: Support 9~36V DC-in
Compliance – CE, FCC, LVD, RoHS, ErP Ready
Temperature – Operating: -40 ~ 70°C
– Storage: -20 ~ 70°C
– Humidity: 90%, non-condensing
Dimensions – 185 (W) x 142 (D) x 60 (H) mm
Packing – Net Weight: 2.2KG
– Gross Weight: 3.5KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm
Warranty – 2 Year limited warranty
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
