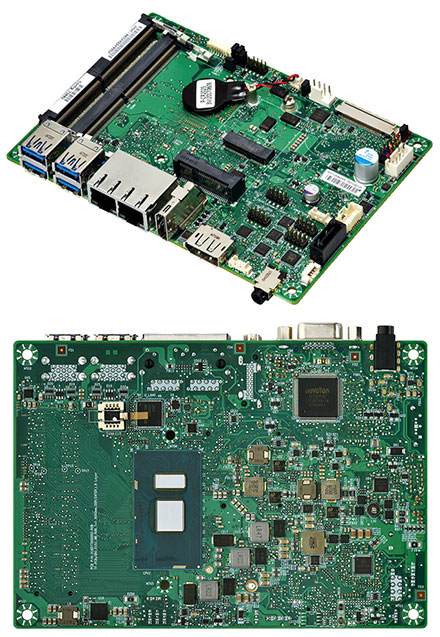

Mitac PD11KS 3.5-SBC (Intel Kaby Lake, i7-7600U, HDMI+dP)

Mitac PD11KS 3.5-SBC (Intel Kaby Lake, i7-7600U, HDMI+dP)
  • Dual LAN !
  • 4x COM !
  • 8-24V DC input !
  • Mini-PCI Express !

Scope of supply : Mainboard with CPU and heatsink.

  • Intel Kaby Lake ULV Core i3/i5/i7 Processor
  • Intel HD graphics and DirectX 12 support
  • Dual channel DDR4 with two connectors for MAX. 32GB memory
  • Support triple display for HDMI, DisplayPort and LVDS / eDP
  • Features high speed Dual Gigabit Ethernet
  • Features 1 SATA 6Gb/s
  • Four SuperSpeed USB3.0 ports support
  • Three RS232 + One RS232/422/485 ports
  • One PCI Express Mini Card connector for expansion
  • One M.2 2232 (E key) for expansion
  • 8 V to 24 V wide-range voltage input


Share

1019.95 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
Item Spec
Form Factor 3.5” single board computer, 102mm x 147mm (4“ x 5.8“)
Processor Chipset Intel Kaby Lake-U i5-7300U with integrated graphics
(Compatible with 3955U/i3-6100U/i5-6300U/i7-6600U and 3965U/i3-7100U/i7-7600U)
Main Memory 2 x 260-pin DDR4 SO-DIMM slot
Max capacity up to 32GB
Audio Controller Realtek ALC283
Expansion Capability M.2 2230 (E Key) with (PCIex1/USB2.0) 1
Mini PCIe (full length, USB/PCIe/SATA) 1
External I/O HDMI-out 1
Display port 1
USB3.0 4
RJ-45 2
Audio combo jack (Mic-in and Line-out) 1
Internal I/O LVDS/eDP 1
7-pin SATA connector 1
4-pin SATA power 1
USB2.0 2
RS-232 3
RS-232/422/485 1
Audio header supporting system stereo speaker or buzzer 1
MiAPI header 1
Chassis front panel header 1
SIO Controller NCT6104D
LAN Support 1 x I219LM, 1 x I211AT
BIOS AMI UEFI
Hardware Management Nuvoton NCT6104D based subsystem, including:
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range thermal values
Environment Operating Temperature: 0°C ~ 60°C (32°F ~ 140°F)
Storage Temperature: -20°C ~ 80°C (-4°F ~ 140°F)
Relative Humidity: 95% @60°C non-condensing
Certification CE
FCC
