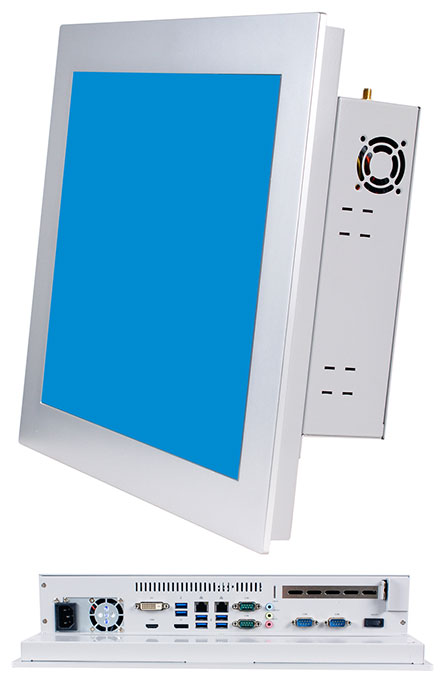

Jetway HPC-170SR-ITQ170 Panel-PC (17" 1280x1024 5W Touchscreen, Intel Q170 LGA1151, 4GB RAM)

Jetway HPC-170SR-ITQ170 Panel-PC (17" 1280x1024 5W Touchscreen, Intel Q170 LGA1151, 4GB RAM)

  • 17.0” 350 nits high brightness SVGA TFT LCD with LED backlight
  • Onboard Intel® Q170 Express Chipset
  • Supports Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
  • 2* Dual Channel DDR4 2133MHz up to 32GB
  • Support Dual Intel® Gigabit LAN
  • Support 4 * COM ports (COM1/3 Support RS232/422/485)
  • Support 6*USB3.0 Ports
  • Support 2.5” SATA HDD, 1 * M-SATA connector
  • Support 1*PCI or PCI-Ex16 , 2 * Mini PCI-E
  • Plastic and IP65-rated front bezel


Share

1129.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (2.5"):

OS:

Build/Install:
 Display
Front Bezel - IP65, NEMA 4 rugged protection, metal front bezel
Display Type - 17.0" With LED Backlight
Brightness ( cd/m²) - 350 nits
Display Color - 262K
Resolution - 1280 x1024 @ 60Hz
Viewing Angle (H/V) - 170°/160°
Pixel Pitch - 0.264 x 0.264 mm
Aspect Ratio - 4:3
Contrast Ratio - 1000:1
Response Time - 3.5 ms
 Touch screen
Type - 5 wires analog resistive type
Active Range - 337.00 x 269.50mm ±0.2mm
Transparency - 80 ±3%
Surface Hardness - ≧ 3H (ASTM D3363, pressure 750g/45°)
Operating Force - ≦ 80g
Knock test - 10,000,000 times keystrokes
 Main System
CPU - Intel® LGA1151 Socket
RAM - DDR4 2133MHz Max 32GB
BIOS - 128MB SPI Flash ROM
Storage - 1 * 2.5” SATA HDD - 1 * M-SATA connector
Watchdog Timer - 255 levels, 0~255 sec.
OS Support - Windows 7 / 8.1 / 10 / Linux
 I/O Connector
I/O Ports and Switches - 6 * USB3.0 - 2 * RS232 - 2 * RS232/422/485 - 1 * DVD-D,HDMI,DP - 2 * LAN (Intel® I211AT+I219LM Gigabit LAN) - 1 * 110~240V AC input - 1 * Audio Jack - 1 * Expansion card - 1 * Power button
 Expansion Interface
Expansion - 2 * PCI-E mini card for WIFI or 4G/3G
 Power
Power Input - AC version: 100~240V AC
Dimensions
Case Dimensions - 421*354*91mm
Packing Dimensions - Net Weight: 7.62KG
- Gross Weight: 9.35KG - Color Box dimension: 476*160*460mm
Certifications
Certifications - CE, FCC，IP65 (Front)
 Environment
Temperature - Operating: -10°C ~ 60°C (with W.T. DRAM/HDD in airflow condition) - Operating: -10°C ~ 60°C (with W.T. DRAM/HDD)
- Storage: -20°C ~ 65°C
Shock - Operating: 15G，11ms duration
Vibration - Operating: 5~500Hz/1 Grms
 Warranty
Warranty - The warranty of 2 years, panel the warranty of 1 year
Data sheet Download (PDF)
Data sheet Print view
