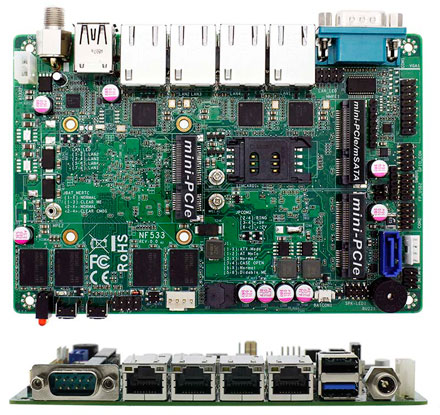

Jetway NF533D4-1900 (Intel Bay-Trail)
PRODUCT IS CURRENTLY NOT AVAILABLE !
- Intel® Bay Trail Celeron® Processor J1900 2.0G Quad Core
- Integrated Intel® HD Graphics, VGA interface
- Max. Resolution 2560 x 1600/60Hz
- Support DDR3L 1333MHz Single Channel
- Onboard 4GB System Memory
- 4 * Intel i211AT PCIe GbE LAN
- 1 * Serial ATAII (3Gb/s)
- 1 * External COM (RS232), 1 * Internal COM (RS232)
- 1 * External USB3.0, 1 * USB1.1/2.0, 2 * Internal USB1.1/2.0
- 2 * Full size mPCIe, 1 * Full size mPCIe shared with mSATA
- 1 * SIM Card Holder
- Lockable DC-in PWR JACK
- 3.5” Form Factor (148mm x 102mm)
SSD (mSATA):
Build/Install:
| Rear I/O | |||||||||||||||||||||||
| VGA | - 0 | SPDIF Output | - 0 | ||||||||||||||||||||
| DVI | - 0 | Serial | - 1 ( RS232 ) | ||||||||||||||||||||
| HDMI | - 0 | ||||||||||||||||||||||
| DisplayPort | - 0 | Parallel | - 0 | ||||||||||||||||||||
| Ethernet | - 4 | eSATA | - 0 | ||||||||||||||||||||
| USB | - 2 ( 1*USB3.0, 1*USB1.1/2.0 ) | PS2 | - 0 | ||||||||||||||||||||
| Audio | - 0 | DC-Input | - 1 ( 12V Lockable DC-In PWR Jack ) | ||||||||||||||||||||
| Internal Connector | |||||||||||||||||||||||
| USB | - 2 ( USB1.1/2.0 ) | SIM Card Holder | - 1 | ||||||||||||||||||||
| PS/2 | - 1 | CFast Card Socket | - 0 | ||||||||||||||||||||
| LVDS / | - 0 | CF Card Socket | - 0 | ||||||||||||||||||||
| Inverter | CIR | - 0 | |||||||||||||||||||||
| VGA | - 1 | GPIO 8-bit | - 1 ( 4in/4out ) | ||||||||||||||||||||
| Serial | - 1 | Chassis intrusion | - 1 | ||||||||||||||||||||
| ( RS232 with 5V/12V selectable header ) | Audio Header | - 0 | |||||||||||||||||||||
| Parallel | - 0 | SPDIF | - 0 | ||||||||||||||||||||
| SATA | - 1 ( SATAII 3.0Gb/s ) | HDMI-SPDIF | - 0 | ||||||||||||||||||||
| mPCIe | - 3 | SMBUS/ I2C | - 1 ( SMBUS ) | ||||||||||||||||||||
| ( 2*Full size, 1*Full size shared with mSATA ) | AT mode jumper | - 1 | |||||||||||||||||||||
| mSATA | - 0 | Jetway Daughter | - 0 | ||||||||||||||||||||
| M.2 | - 0 | Audio Amplifier Header | - 0 | ||||||||||||||||||||
| Other | |||||||||||||||||||||||
| Power | - 12V Lockable DC-In PWR Jack, Supports AT/ATX Mode | ||||||||||||||||||||||
| Watchdog Timer | - Programmable 1 ~ 255 sec/min | ||||||||||||||||||||||
| Certifications | - CE, FCC, RoHS, REACH | ||||||||||||||||||||||
| Temperature | - Operating : 0℃ ~ 60℃, Storage : -20℃ ~ 85℃ | ||||||||||||||||||||||
