CPU |
Intel Bay Trail Atom E3845 Quad-Core 4x 1.91Ghz |
Memory |
1x DDR3L SODIMM slot (8GB max.) behind service door (4GB preinstalled) |
Storage |
1x 2.5" SATA slot behind service door (64GB SSD preinstalled) |
Display |
10.4" (Native resolution 1024x768)
1000 nits sunlight-readable (MIL-L-85762A)
Hyper dimming to 0.1nits for night mode operation
Support auto-dimming
70.000 hrs backlight life |
Touchscreen |
5-wire resistive
Enhanced anti-reflection coating
Defrost/Defog function |
Audio |
Built-in dual speakers |
Sensors |
Built-in 3-axis G-sensor |
Expansion |
3x Mini-PCIe slot (1x occupied by WLAN/BT) |
WLAN/BT |
Intel 7260 WLAN/BT Mini-PCIe card preinstalled
802.11 a/b/g/n/ac, Bluetooth V4.0 |
GPS |
Integrated GPS receiver |
WWAN |
GPRS/HSPA/LTE/etc.. with optional Mini-PCIe module |
Antennas |
Integrated antennas for GPS, WLAN/BT, WWAN
plus external antenna connectors 1x GPS, 2x WLAN/BT, 2x WWAN |
I/O |
1x RS232 (0/5/12V power support)
1x RS422/485 (3KVrms isolated, auto flow control, NMEA0183 physical layer)
2x USB 2.0
2x Gigabit LAN RJ45 (teaming/redundant function support)
4x Digital I/O (3KVrms isolated)
2x CAN-BUS (2.5KVrms isolated, NMEA 2000/SAE J1939/OBD-II support)
1x Audio output jack
1x Line-In/Mic jack
4x video input (optional) |
Function button |
1x programmable button
1x brightness/dimming button
1x defrost/defog button |
OS Support |
Windows 7, Windows 8/8.1, Linux |
Enclosure |
Die-cast Aluminium alloy, fanless design
VESA 75/100 mounting holes |
Dimensions |
276(W) x 252(H) x 67.3(D) mm
3.8kg |
UPS battery |
3000mAh, 7.4V |
Operating temperature range |
-30° to 55°C |
Humidity |
5-95%, non condensing |
IP Rating |
IP66 |
Shock/Vibration
|
MIL-STD-810G |
Power input
|
Wide range isolated 18~60V (9~36V optional)
Ignition sense auto start/stop function
Remote power on, wake on SMS/RTC |
|
|

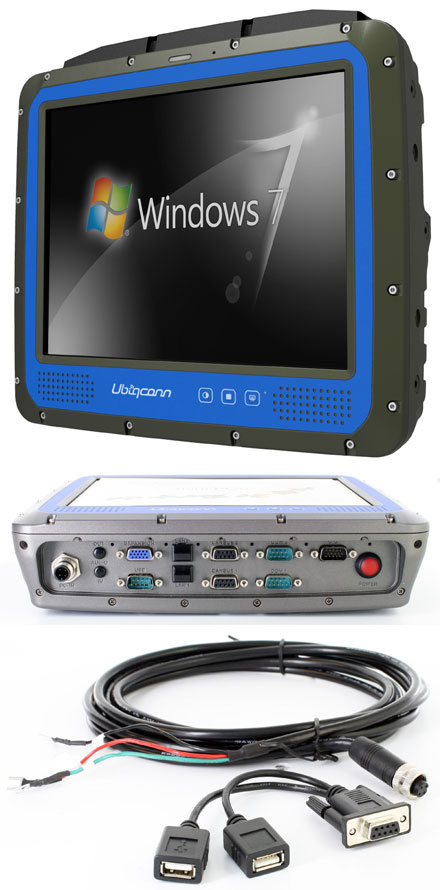

Scope of supply |
- VT1020-HRD 10.4" Rugged Tablet PC |
|
- 1x power cable (plus, ignition plus, minus) |
|
- 1x USB adapter cable |
